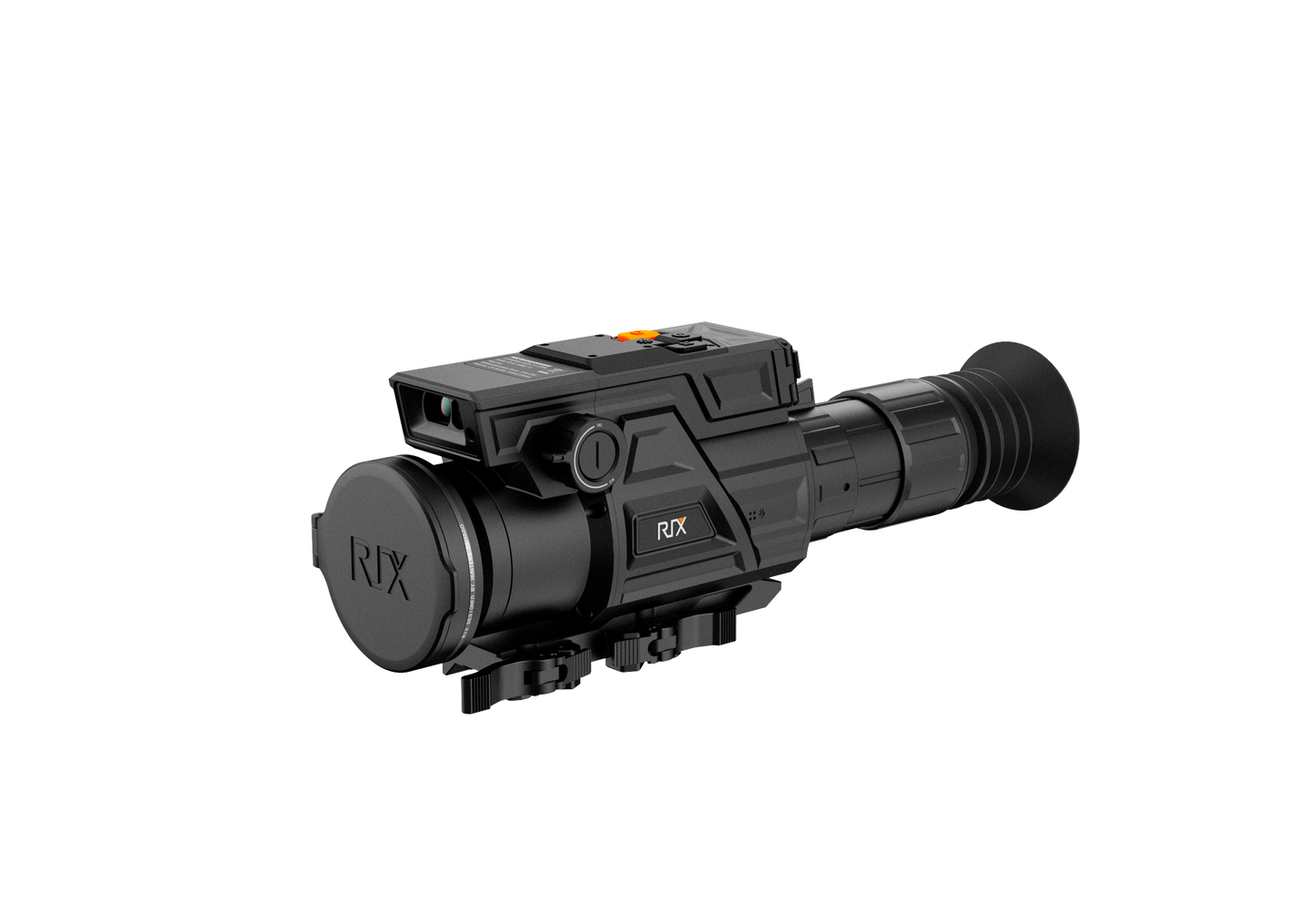

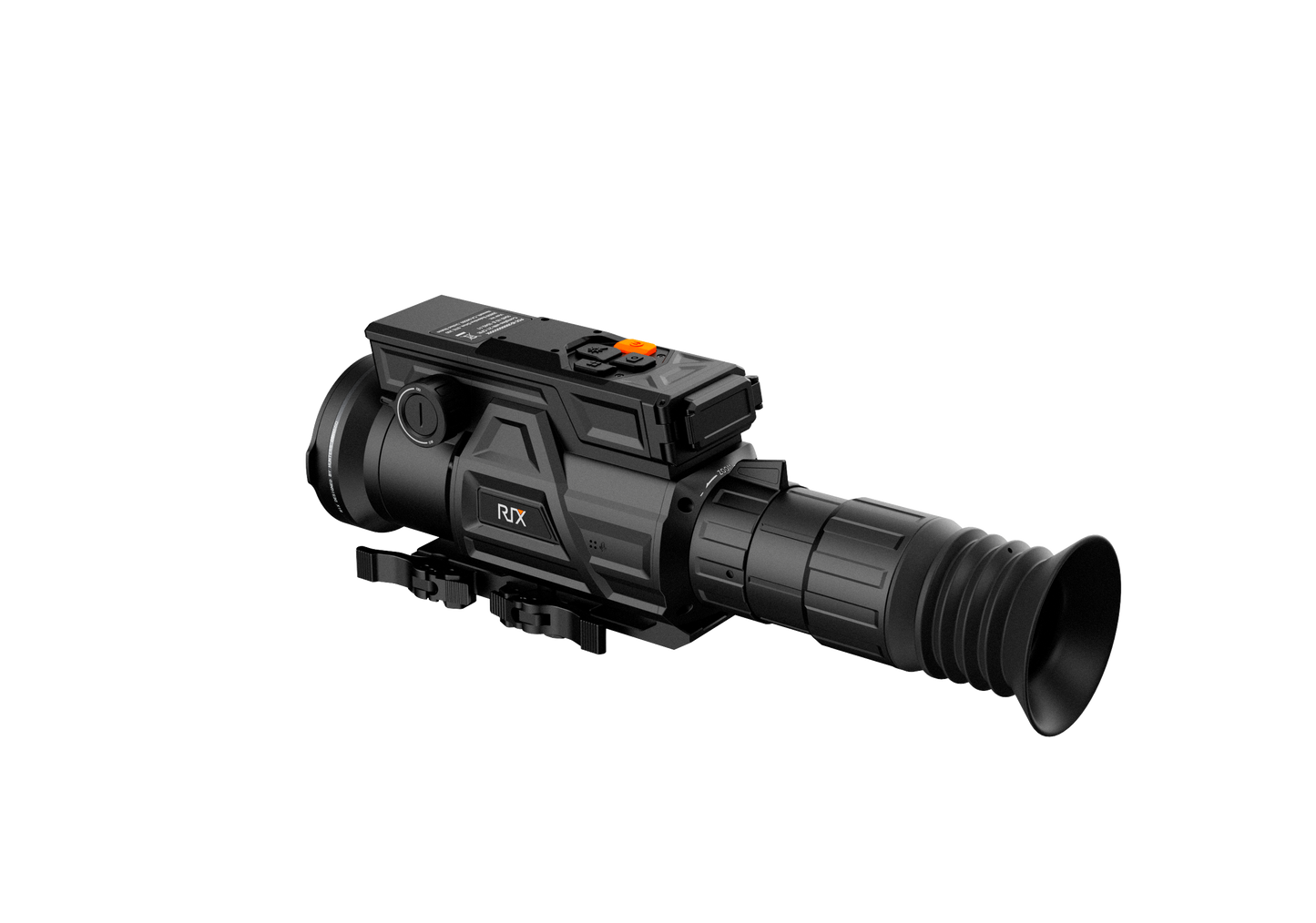

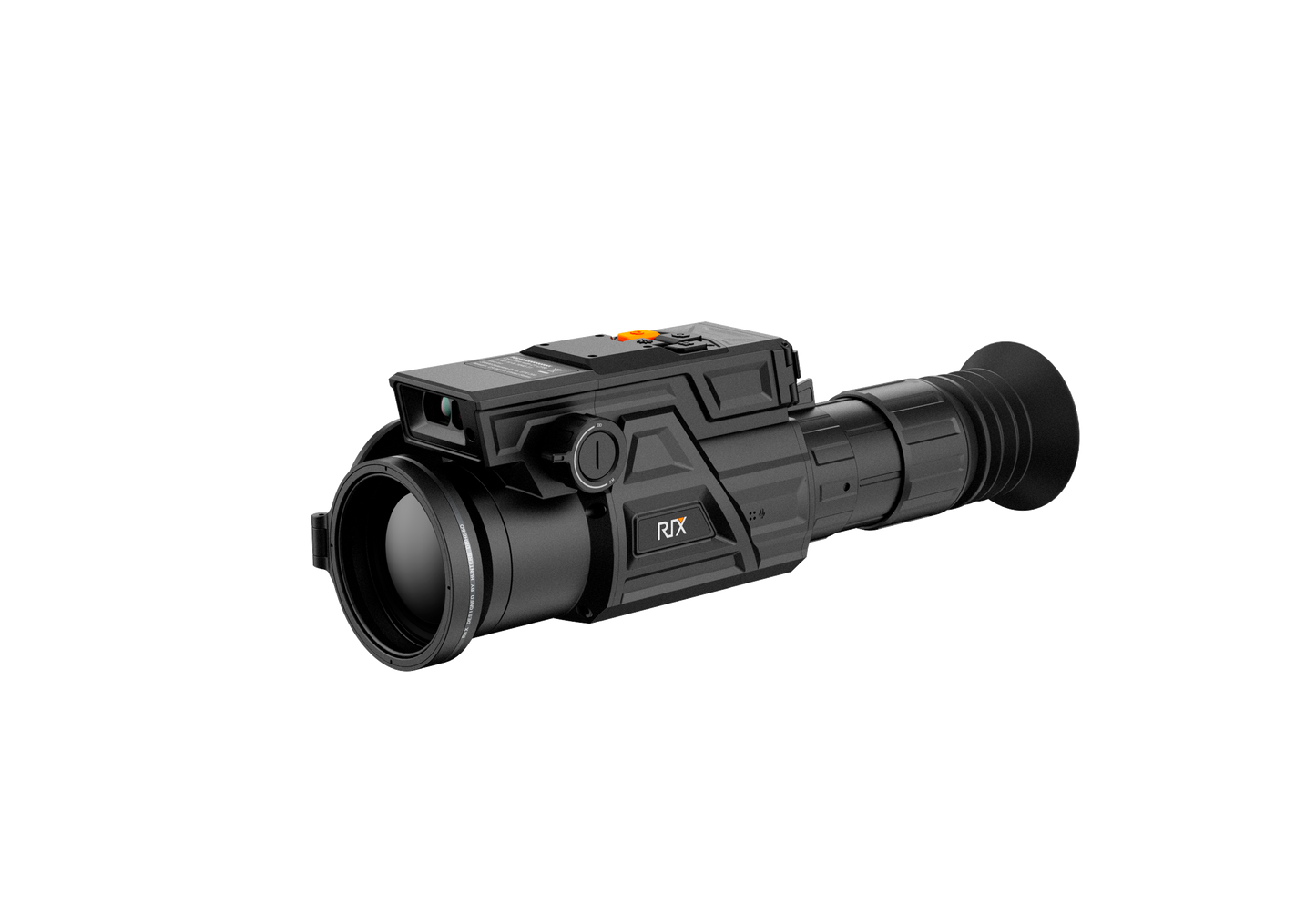

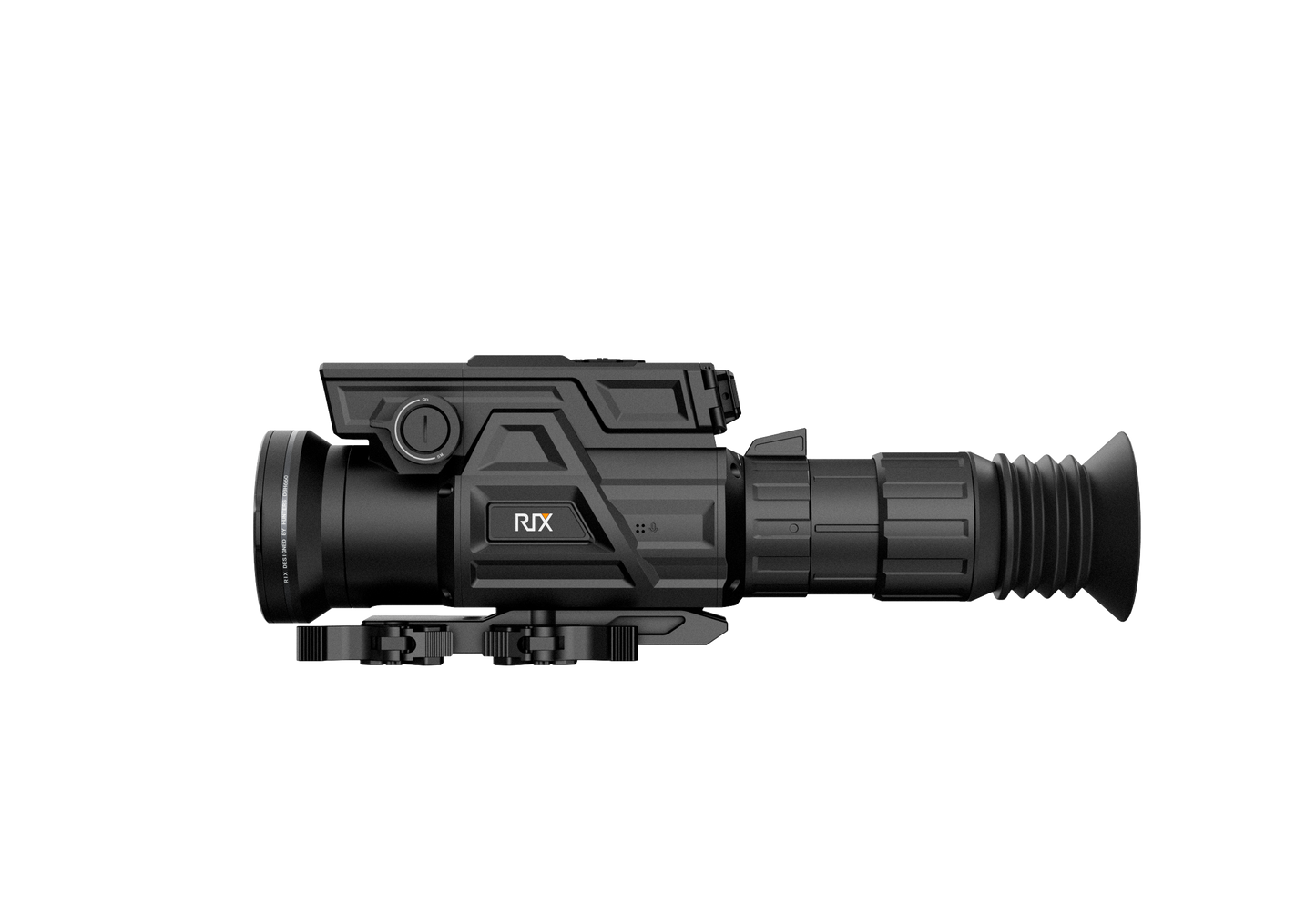

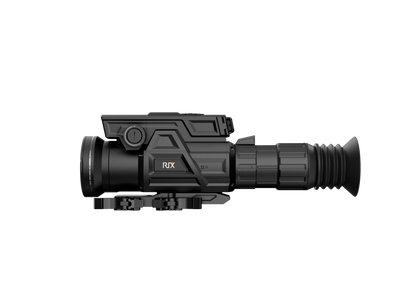

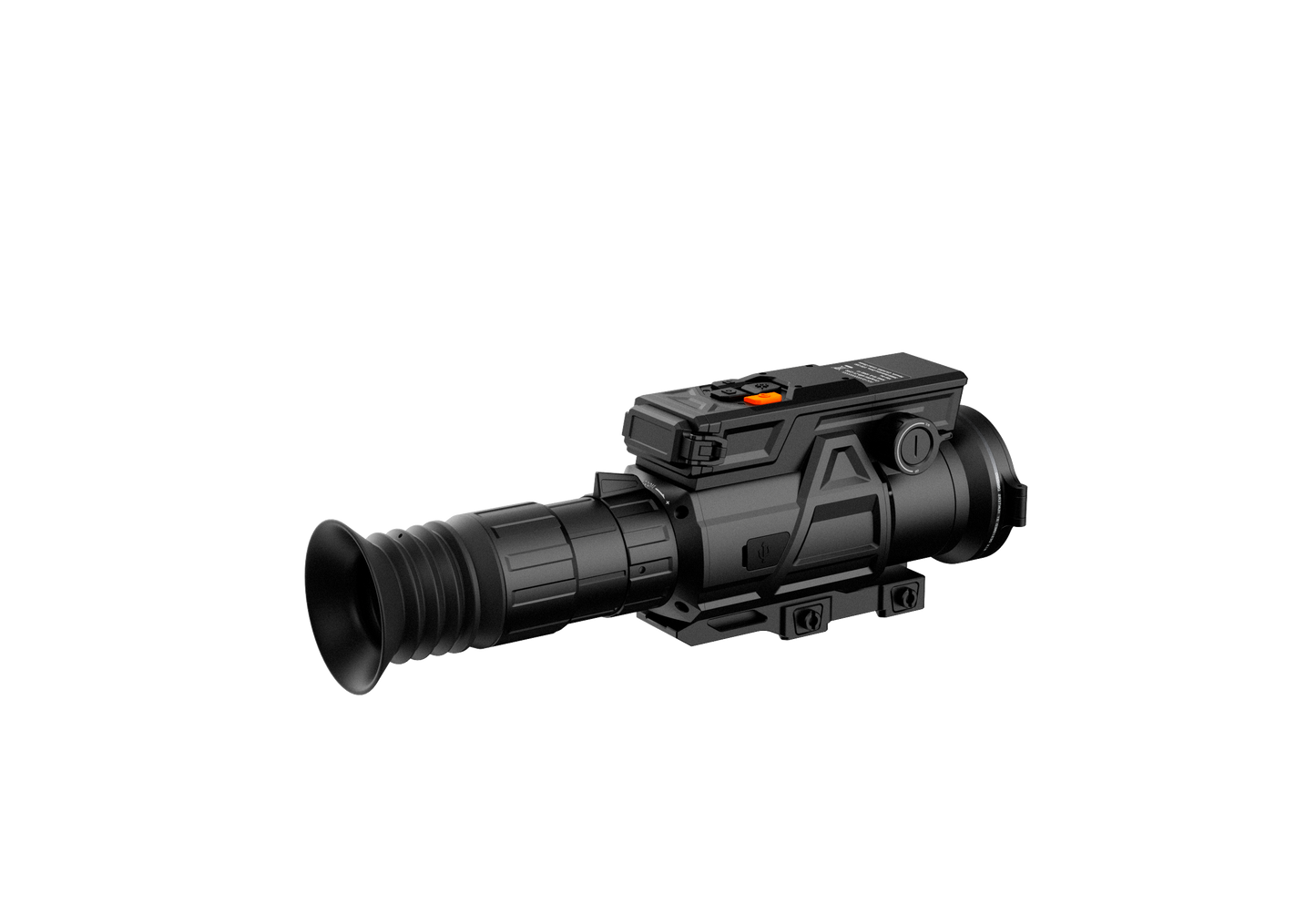

RIX DBH D6

RIX DBH D6

Regular Price $5,699.00
Regular Price Sale Price $5,699.00
Sale Sold Out
Sensor Resolution: 640x512
Objective Lens: 60mm
Optical Zoom: 3
Display Resolution: 2560x2560
Operating Time: 8hr

NEW 2025

The DBH D6 is equipped with a 640×512 12μm sensor boasting NETD≤20mK and a 60Hz refresh rate, ensuring hunters always get clearer and smoother images. The product offers a 60mm objective and 3x base magnification. 3x-18x magnification range helps users clearly observe hunting targets at longer distances. Smooth digital zoom controls that steps in precise 0.1x increments. The circular high-resolution 1.03 in OLED screen allows for precise zeroing maintaining each adjustment at only 3/8 of a inch @ 100 yards while providing a highly detailed HD image. Based on air temperature, wind speed, ammunition, distance and other information, automatically calculate the aiming position and display it on the device screen. Using WIFI and mobile APP connection, ballistic parameters can be uploaded or downloaded, so that shots are more precise. The dual side focusing structure with 250° rotation cycle and the quick throw zoom lever makes zooming in and out quick and convenient helping acquire targets faster. Dual lever return to zero QD mount makes mounting and unmounting fast. The DBH D6 provides multiple functions that can effectively improve the hunting experience. Boasting an integrated green laser that is easily activated for marking downed game(an industry first). A Built-in 1200-yard Laser Rangefinder and video & photo playback features in the scope.



Spec Sheet

Sensor Specifications
Type
VOx Uncooled



Resolution, pixels
640×512



Pixel Pitch, µm
12



NETD, mK
≤20



Frame Rate, Hz
60



Optical Specifications
Objective Lens,mm
60 F1.0



Optical Zoom, x
3



Field of View, degrees / yd @ 100 yd
7.3°×5.8°



Digital Zoom, x
1 to 6, stepped



Eye Relief, mm
60



Diopter Adjustment, D
-5 to +2



Detection Range, m/yd
3280



Display Specifications
Type
OLED



Resolution, pixels
2560 x 2560



LRF Specification
Type, nm
905



Max Range, yd
1200



Wi-Fi
Wireless Protocol
Wi-Fi



Frequency, GHz
2.4GHz



BT
Frequency, MHz
2402~2480



Video Recorder
Video / Photo Resolution, pixels
1280×1280



Video / Photo Format
.mp4 / .jpg



Built-in Memory, GB
64



Physical Specifications
Degree of Protection, IP code
IP67



Operating Temperature Range, °F
-4 to +122



Weight, lb
2.9



Dimensions, inch
10.3×3.3×3.8



Connections and Compatibilities
Battery Type
18650×2



Capacity, mAh
3800



Operating Time on Battery Pack (at t=72°F), h
8



External Power Supply, V
5V (Type C USB)



Max Recoil Power on Rifled Weapon (Eo), g/Joules
1000g/6000Joules
