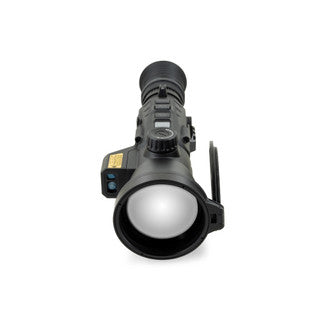

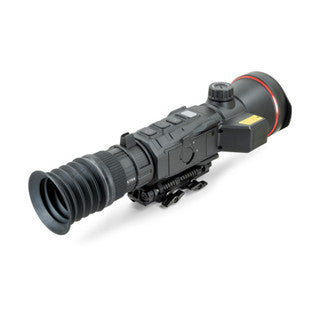

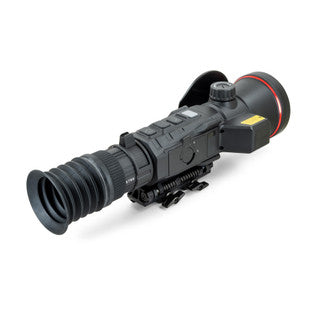

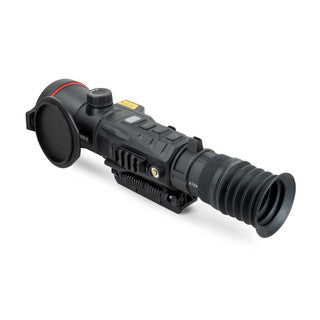

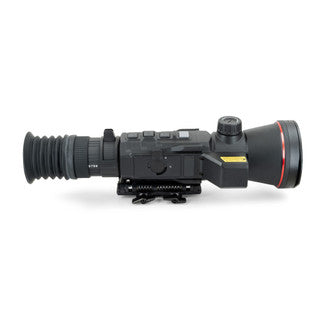

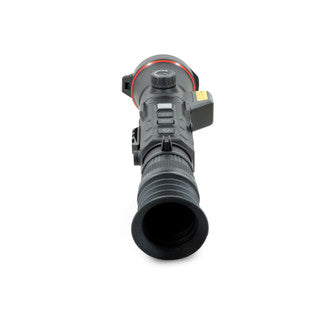

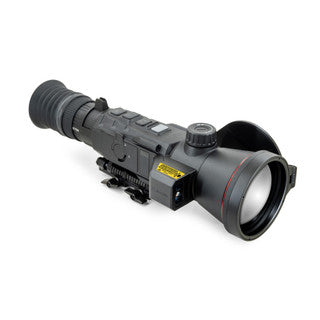

NOCPIX RICO2 S75R Thermal Weapon Sight 1280x1024 75mm

Objective Focal Length:75mm

Detection Range:4250 Yards

Optical Magnification:3X

Device Technology:Thermal Imaging

Sensor Resolution:1280×1024

Sensor Pixel Size:12 μm

Digital Magnification:10X, stepped

Objective F#:1.0

Objective Diameter:75 mm

Sensor Frame Rate:60 Hz

Onboard Recording:Yes

Description

Tech Specs

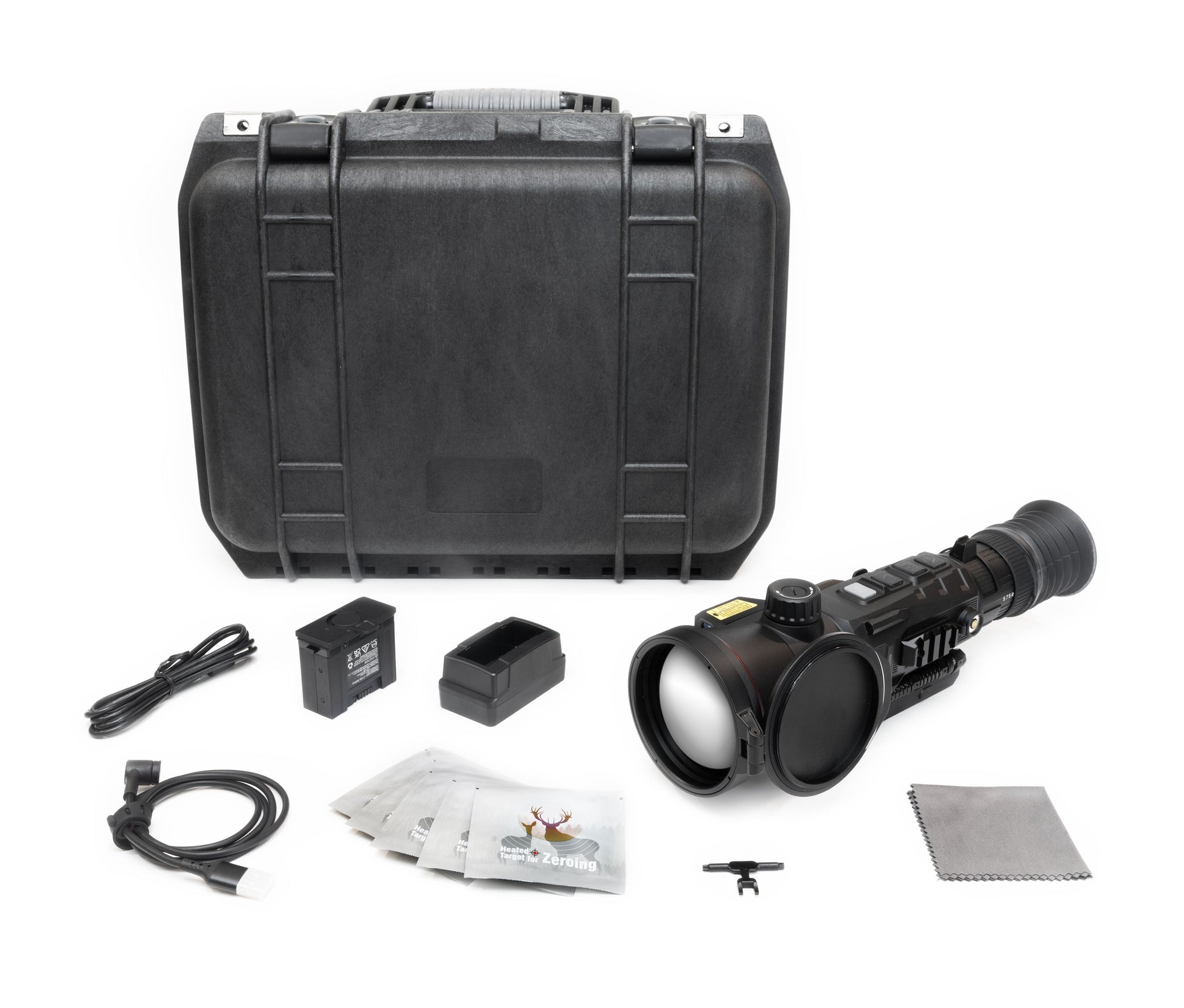

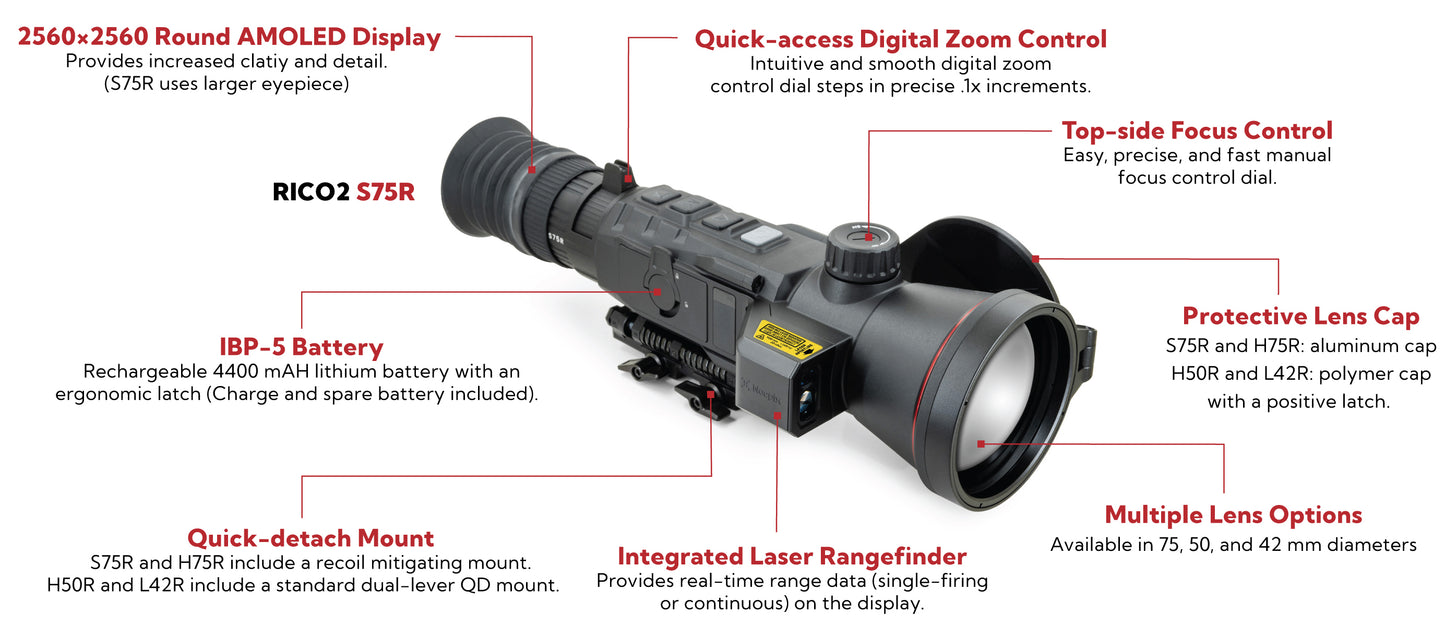

The RICO 2 (Rugged Infrared Compact Optic) delivers cutting-edge thermal performance with advanced imagingtechnology and precision-driven features. Available in four models—S75R (1280×1024, 75 mm), H75R (640×512, 75 mm), H50R(640×512, 50 mm), and L42R (384×288, 42 mm)—each boasts a ≤15 or ≤18 mK NETD rating for exceptional thermal sensitivity.A high-resolution 2560×2560 round AMOLED display provides a comfortable and immersive viewing experience, while the smooth digital zoom control ensures seamless, intuitive operation. The integrated 1,200-yard laser rangefinder pairs withan advanced ballistic calculator—just input bullet velocity and ballistic coefficient, and the system automatically adjusts for drop based on target distance. Additional features include a quick-detach mounting system, spare battery, magnetic charging port, recoil-activated video, and picture-in-picture mode. Built for serious shooters, the RICO 2 combines rugged durability with premium performance.



Optics

Objective Focal Length

75mm



Detection Range

4250 Yards



Optical Magnification

3X



Display Type

AMOLED



Eye Relief

70mm



Digital Magnification

10X, stepped



Diopter Range

-5 to +5



Vertical Angular Field of View

9.4°



Horizontal Angular Field of View

14.7°



Focusing Mechanism

Manual Focus



Objective F#

1.0



Objective Diameter

75 mm



Objective Lens Material

Germanium



Display Resolution

2560×2560



Features & Performance

Startup Time

<10 Seconds, Instant from Standby



Rangefinder

Integrated 1200 yd LRF



Color Palettes

White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian



Picture-in-Picture

Yes



Storage Capacity

32GB



Connector Output

Power/Data



User-Updatable Firmware

Yes



Mobile App

Yes



One-Shot Zero

Yes



Stand-by Mode

Yes



Warranty

5 Years



Run Time

5+



Power Source

USB-C External, IBP-5 Li-ion Battery Pack



Reticle

8 (7 Static, 1 DIY)



Connector Type

USB-C



External Power Source

USB-C



Country of Manufacture

China



Wifi

Yes



Onboard Recording

Yes



Image Capture

Yes



Video Output

Yes



Environmental Specifications

Operating Temperature Range

-4°F~122°F



Recoil Rating

1000 g/s² (300 Win./7mm Mag)



Ingress Protection

IP67



Physical

Mounting Interface

QD Picatinny



Housing Material

Magnesium Alloy



Weight

45.86 oz



Height

3.66



Width

4.57



Length

13.46



Sensor Specifications

Non-Uniformity Correction (NUC)

Manual, Automatic, Semi-Automatic



Device Technology

Thermal Imaging



Sensor Resolution

1280×1024



Sensor Type

Nocpix 1280



Sensor Pixel Size

12 μm



Thermal Sensitivity

<15 mk



Sensor Frame Rate

60 Hz
