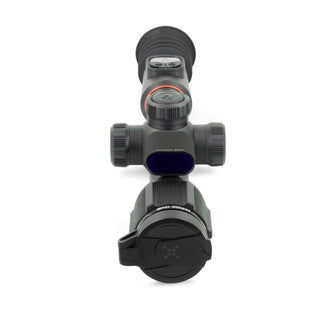

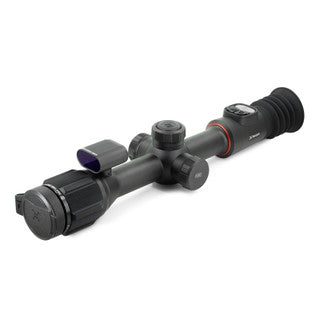

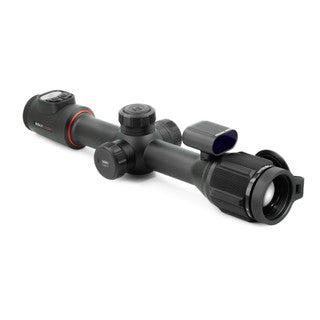

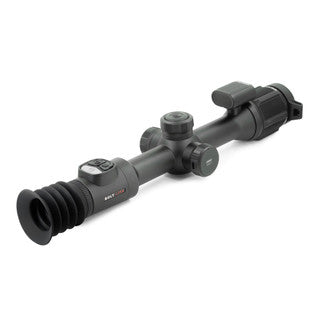

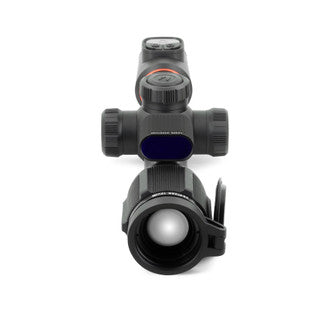

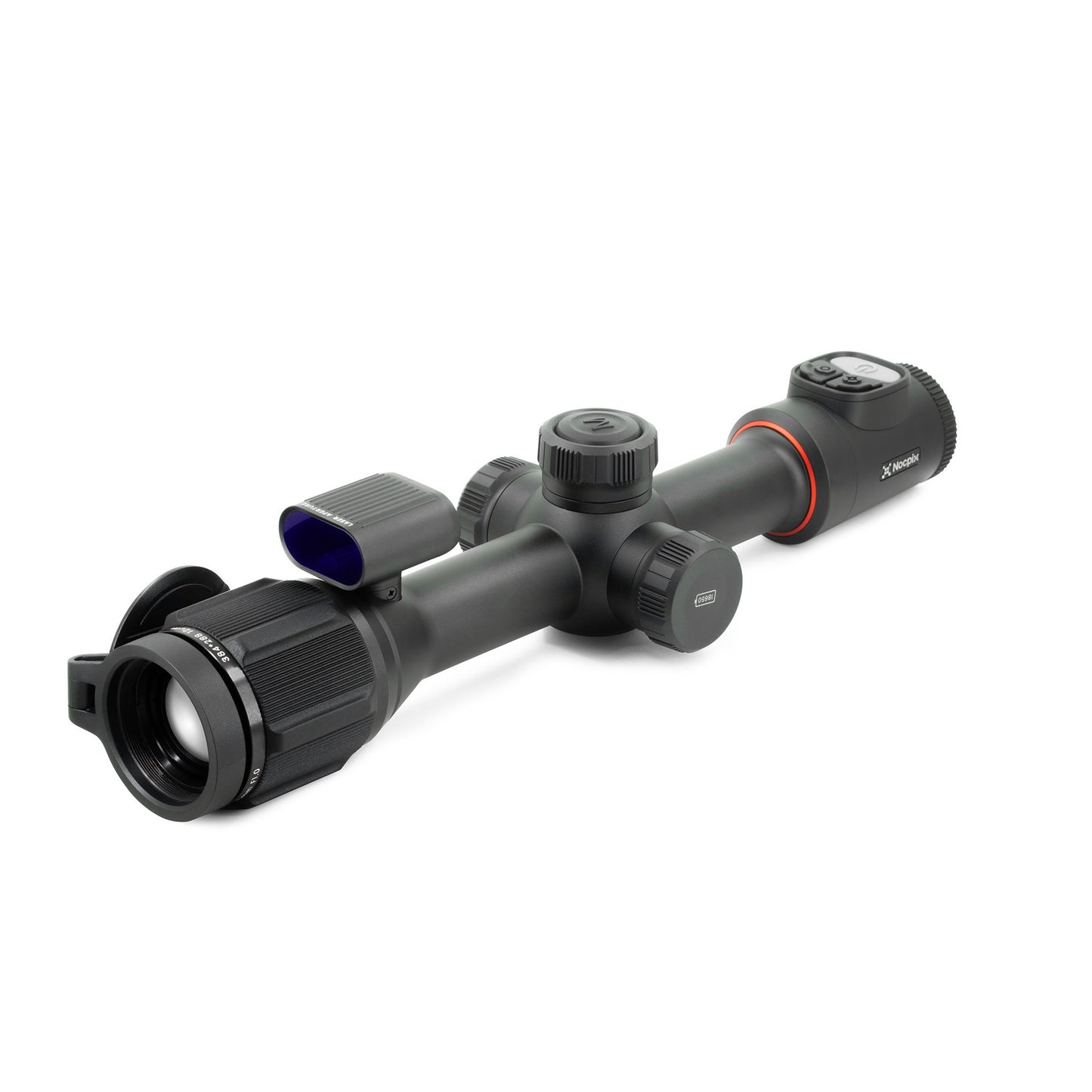

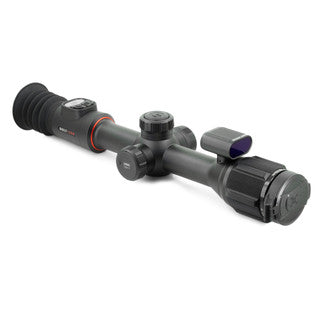

NOCPIX Bolt L35R Thermal Weapon Sight LRF 384 35mm

New for 2025, the BOLT line brings Nocpix thermal performance into an affordable weapon sight platform. Available in two models, the L35 (384×288) and P25 (256×192), both optics feature an integrated laser rangefinder and ballistic calculator, providing long-range precision without breaking the budget. Built for the field, the BOLT combines an internal rechargeable battery with a removable hot-swappable 18650 auxiliary battery for extended run time. Designed to mount like a traditional day optic, it is compatible with standard 30 mm rings and mounts (not included), making it equally at home on bolt-action and semiautomatic rifles. While not as feature-rich as the ACE series, the BOLT models deliver reliable thermal imaging, intuitive controls, and rugged construction in a streamlined package. For the first time, Nocpix offers a budget-friendly option with a built-in rangefinder, making the BOLT line a tremendous value for shooters looking to step into thermal without compromise on critical capabilities.



Optics

Objective Focal Length

35 mm



Detection Range

1970 Yards



Optical Magnification

3.5X



Digital Magnification

4X



Objective Lens Material

Germanium



Horizontal Angular Field of View

7.5°



Vertical Angular Field of View

5.7°



Objective Diameter

35 mm



Objective F#

1.0



Focusing Mechanism

Manual Focus



Eye Relief

50mm



Display Type

AMOLED



Diopter Range

-5 to +5



Diopter Range

-5 to +5



Display Resolution

1024×768



Features & Performance

Startup Time

<10 Seconds, Instant from Standby



Rangefinder

Integrated 1,300 Yard LRF



Color Palettes

White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian



Picture-in-Picture

Yes



Storage Capacity

32 GB



Connector Output

Power/Data



User-Updatable Firmware

Yes



Mobile App

Yes



One-Shot Zero

Yes



Stand-by Mode

Yes



Warranty

5 Years



Run Time

6+



Power Source

USB-C External, 18650 Battery, Built-In Battery Pack



Reticle

8 (7 Static, 1 DIY)



Connector Type

USB-C



External Power Source

USB-C



Country of Manufacture

China



Wifi

Yes



Onboard Recording

Yes



Image Capture

Yes



Video Output

Yes



Environmental Specifications

Operating Temperature Range

-4°F~122°F



Recoil Rating

1000 g/s² (300 Win./7mm Mag)



Ingress Protection

IP67



Physical

Length

14.8



Width

3.6



Height

3.0



Weight

31.0 oz



Housing Material

T-6063 Aluminum



Sensor Specifications

Device Technology

Thermal Imaging



Sensor Type

Nocpix 384



Sensor Resolution

384x288



Sensor Pixel Size

12 µm



Sensor Frame Rate

50 Hz



Thermal Sensitivity

≤20 mk



Non-Uniformity Correction (NUC)

Manual, Automatic, Semi-Automatic
