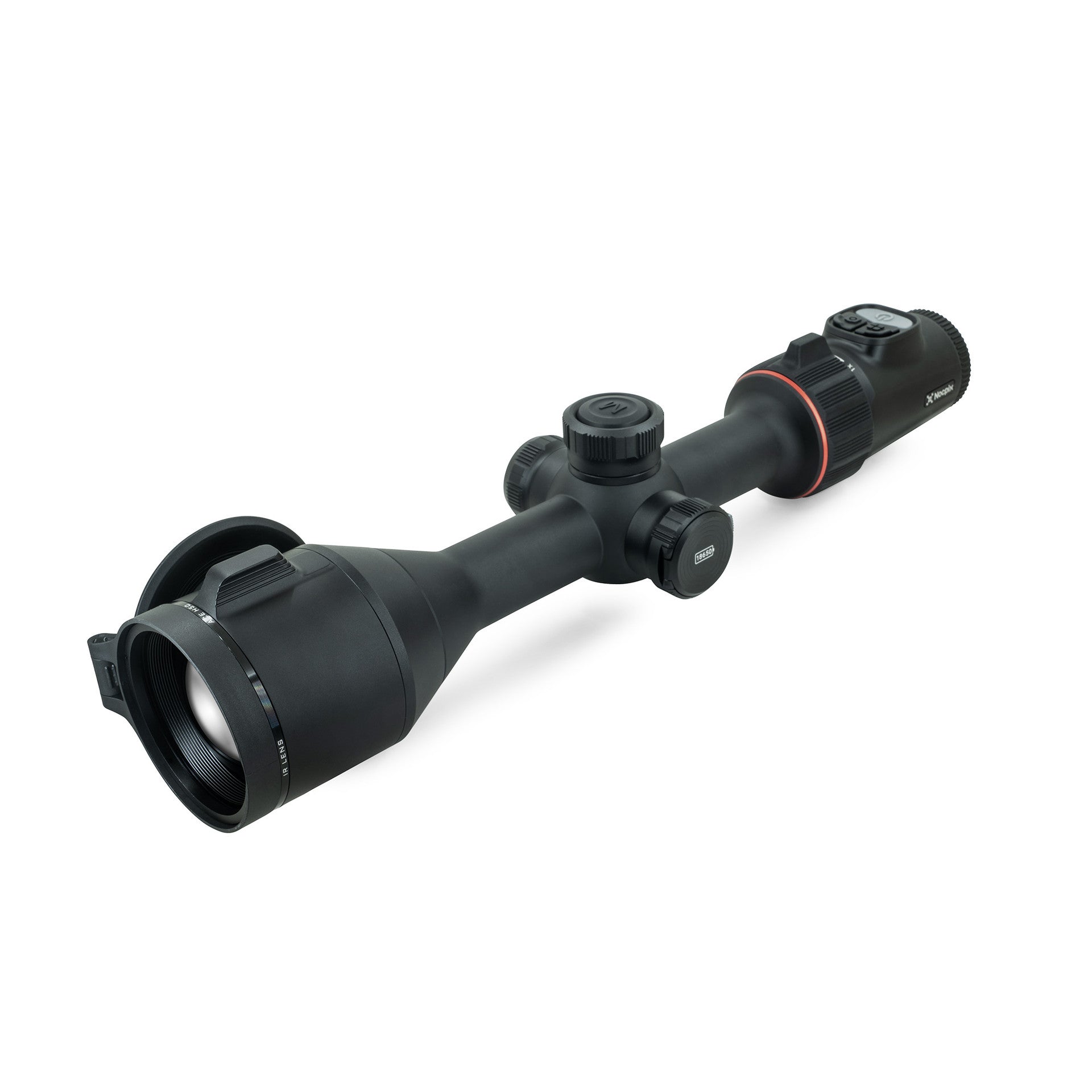

Nocpix Ace H50 640x512 50mm

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image.

• A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
• High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
• Simplified controls offer improved ergonomics and a better user experience in the field.
• Uses common 18650 style rechargeable batteries.
• Charge through the unit with a unique lock-out USB-C port design.

Specs Sheet

• Sensor Specifications

  Device Technology

  Thermal Imaging

  Sensor Type

  Nocpix 640

  Sensor Resolution

  640×512

  Sensor Pixel Size

  12μm

  Sensor Frame Rate

  60hz

  Thermal Sensitivity

  <15mk

  Non-Uniformity Correction (NUC)

  Manual, Automatic, Semi-Automatic

• Features & Performance

  Color Palettes

  White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

  Rangefinder

  Integrated 1300 yd LRF

  Picture-in-Picture

  Yes

  Connector Output

  Power/Data

  User-Updatable Firmware

  Yes

  Mobile App

  Yes

  One-Shot Zero

  Yes

  Stand-by Mode

  Yes

  Connector Type

  USB-C

  Wifi

  Yes

  Onboard Recording

  Yes

  Image Capture

  Yes

  Video Output

  Yes

  Storage Capacity

  64GB

  Power Source

  USB-C External, 18650 Battery, Built-In Battery Pack

  Run Time

  7+

  Warranty

  5 Years

  Startup Time

  <10 Seconds, Instant from Standby

  External Power Source

  USB-C

  Country of Manufacture

  China

  • Optics

    Objective Focal Length

    50mm

    Detection Range

    2850 Yards

    Digital Magnification

    8X

    Optical Magnification

    3X

    Objective Lens Material

    Germanium

    Horizontal Angular Field of View

    8.8°

    Vertical Angular Field of View

    7.7°

    Objective Diameter

    50mm

    Objective F#

    0.9

    Focusing Mechanism

    Manual Focus

    Eye Relief

    50mm

    Diopter Range

    -5 to +5

    Display Type

    AMOLED

    Display Resolution

    2560×2560
