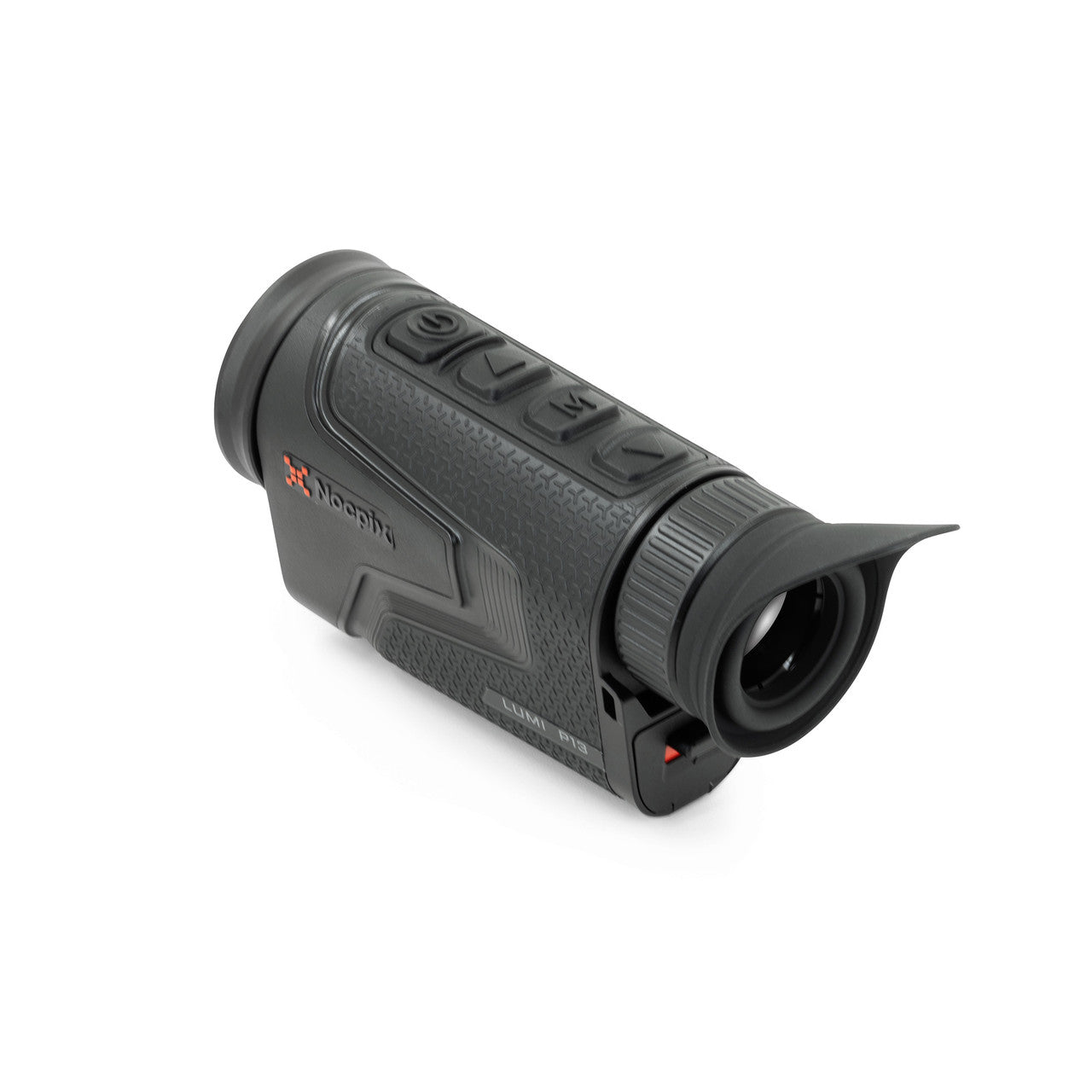

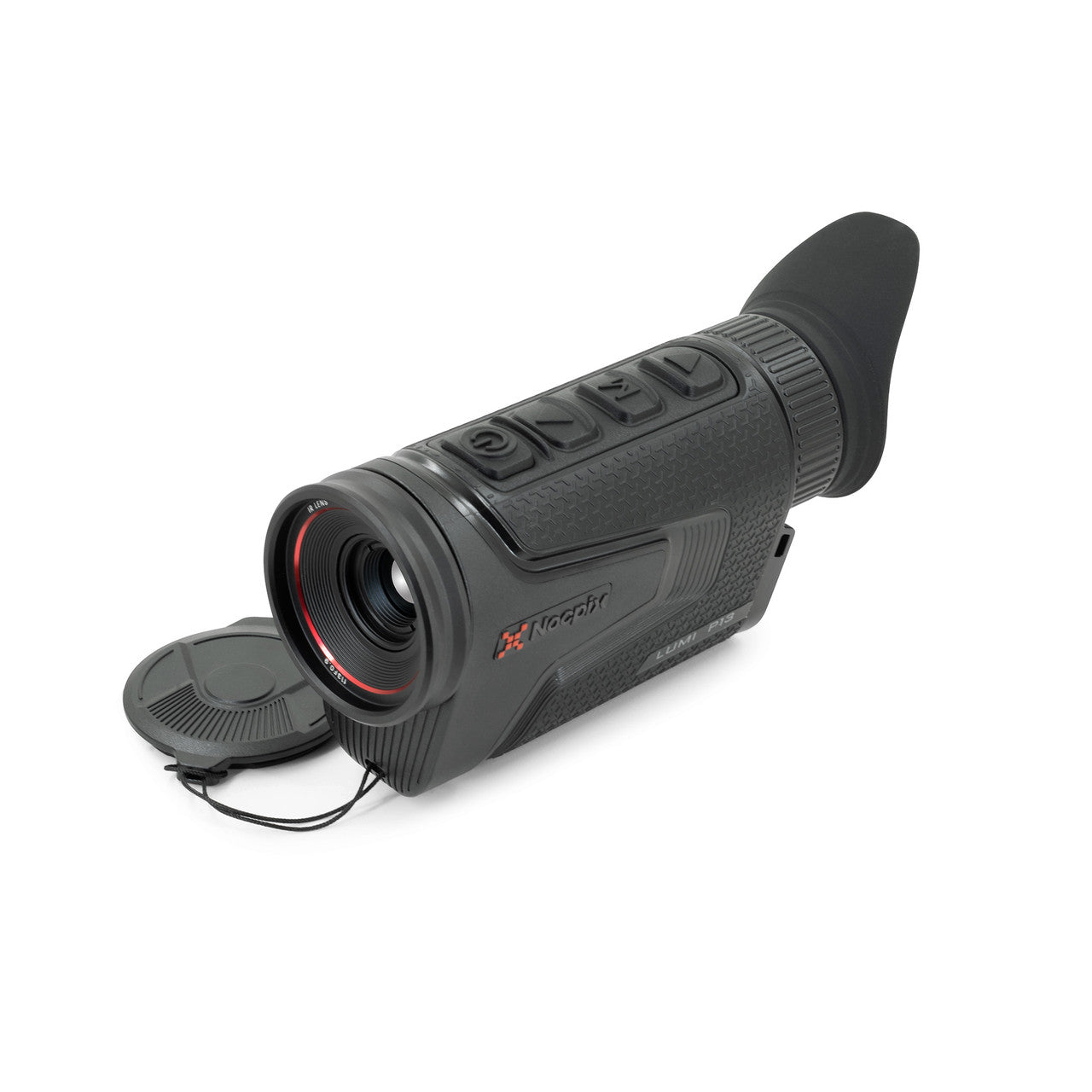

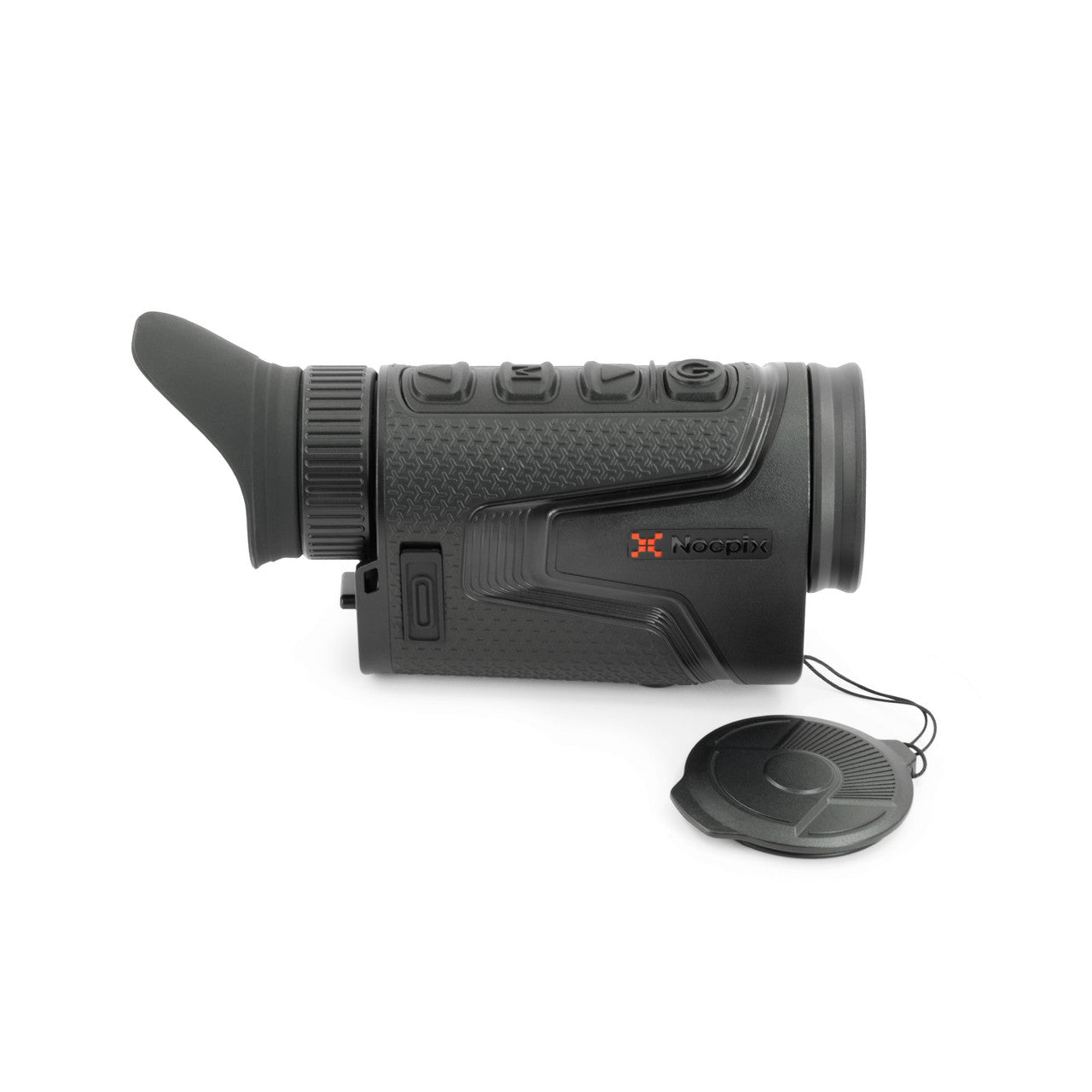

NOCPIX LUMI P13 Compact Thermal Monocular 256x192 13mm

The LUMI brings the power of thermal observation devices to a compact and user-friendly form-factor for hunters on-the go. The all-new LUMI series of handheld thermal monoculars features a high quality thermal sensor, available in 256×192
(P13), 384×288 (L19, L35) or 640×512 (H35) paired with a 1024×768 AMOLED display. This selection provides users with a wide range of resolution and native (base) magnification options. The advanced Reality+ image processing algorithm and a ≤18 mK NETD (thermal sensitivity) rating provide sharp, high-contrast images. Powering the LUMI is simple and affordable using common interchangeable 18650 style batteries. As a powerful tool for scouting and scanning, The LUMI was designed to be as compact and ergonomic as possible while still offering impressive image detail and clarity; LUMI weighs 12 ounces and easily fits in the palm of the hand, a pocket, or the included MOLLE-compatible case.

• Lightweight and compact design easily fits in a pocket or the include MOLLE-compatible pouch.
• Weatherproof rubberized texture increases durability and is not cold to the touch.
• Powered by a common 18650 style rechargeable battery with a spare battery included.
• Advanced R+ image processing provides enhances image quality during digital zoom.
• Onboard photo, video, and audio recording.
• Comfortable ambidextrous vertical design.

• Optics

  Display Resolution

  1024×768

  Objective Focal Length

  13mm

  Detection Range

  730 Yards

  Optical Magnification

  2X

  Display Type

  AMOLED

  Eye Relief

  25mm

  Digital Magnification

  4X

  Diopter Range

  -5 to +5

  Vertical Angular Field of View

  10.1°

  Horizontal Angular Field of View

  13.5°

  Focusing Mechanism

  Manual Focus

  Objective F#

  0.9

  Objective Diameter

  13mm

  Objective Lens Material

  Germanium

• Features & Performance

  Color Palettes

  White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

  Picture-in-Picture

  Yes

  User-Updatable Firmware

  Yes

  Mobile App

  Yes

  Stand-by Mode

  Yes

  Wifi

  Yes

  Image Capture

  Yes

  Video Output

  Yes

  Storage Capacity

  32GB

  Connector Output

  Power/Data

  Power Source

  USB-C External, 18650 Battery

  Connector Type

  USB-C

  Onboard Recording

  Yes

  Warranty

  5 Years

  Startup Time

  <10 Seconds, Instant from Standby

  External Power Source

  USB-C

  Country of Manufacture

  China

  Run Time

  4+

• Environmental Specifications

  Operating Temperature Range

  -4°F~122°F

  Ingress Protection

  IP67

• Physical

  Weight

  10.93 oz

  Housing Material

  Polymer

  Height

  2.91

  Width

  1.85

  Length

  5.47

• Sensor Specifications

  Non-Uniformity Correction (NUC)

  Manual, Automatic, Semi-Automatic

  Device Technology

  Thermal Imaging

  Sensor Resolution

  256x192

  Sensor Type

  Nocpix 256

  Sensor Pixel Size

  12μm

  Thermal Sensitivity

  <20mk

  Sensor Frame Rate

  50hz
