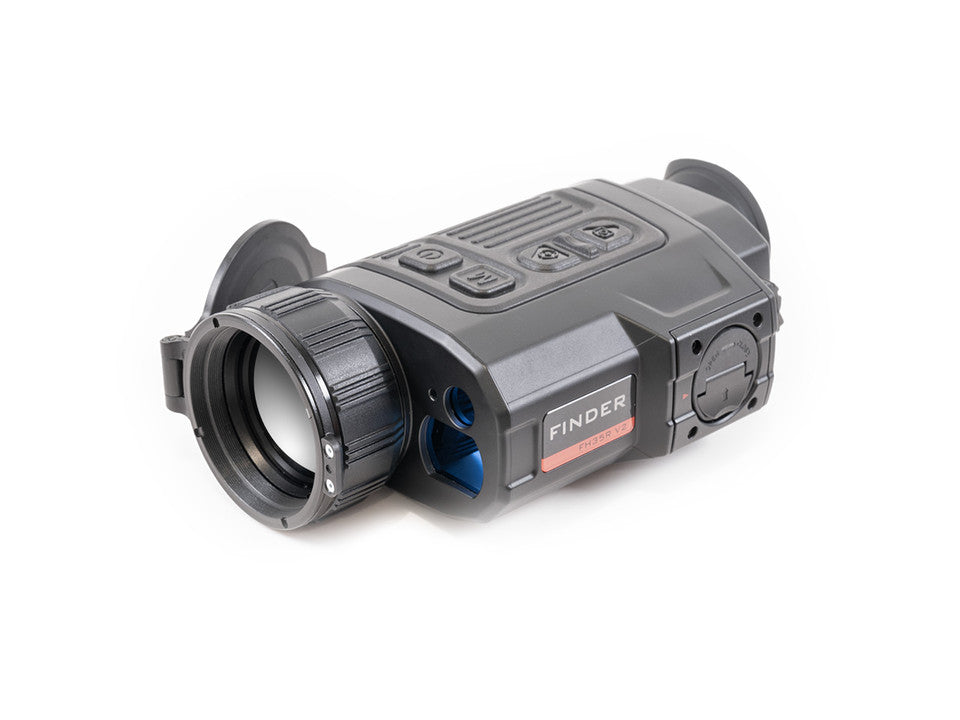

InfiRay Outdoor FINDER FH35R V2 640x512 12 Micron 35mm LRF Monocular

The InfiRay Outdoor FINDER V2 combines a powerful thermal viewer with a handheld laser rangefinder, giving hunters the ability to identify targets at night and accurately determine their range. A 640×512 thermal sensor paired with a 3× 35 mm f/0.9 lens provides a crisp image with ample room for digital zoom, ideal for viewing wildlife or recording photos and videos. The FINDER V2 pairs 800-yard infrared laser rangefinding capability (continuous or single capture) with a 1,750-yard thermal detection range in a compact unit that fits in the palm of your hand. The FINDER V2 ships with two IBP-2 batteries, each providing 3+ hours of run time. A proximity sensor automatically powers off the display when moved away from the viewer’s eye to reduce power consumption and visible light signature.



Device Technology:Thermal Imaging

Objective Focal Length:35mm

Sensor Resolution:640×512

Detection Range:1750 Yards

Sensor Pixel Size:12μm

Sensor Frame Rate:50hz

Optical Magnification:2X

Digital Magnification:4X

Objective Diameter:35mm

Objective F#:0.9

Onboard Recording:Yes

Objective Lens Material

Germanium

Horizontal Angular Field of View

12.6°

Vertical Angular Field of View

9.4°

Focusing Mechanism

Manual Focus

Eye Relief

20mm

Display Type

AMOLED

Display Resolution

1024×768

Features & Performance

Color Palettes

White Hot, Black Hot, Red Hot, Highlight, Ironbow, Rainbow

Rangefinder

Integrated 800yd LRF

Stand-by Mode

Yes

Picture-in-Picture

Yes

Wifi

Yes

Image Capture

Yes

User-Updatable Firmware

Yes

Mobile App

Yes

Connector Type

USB-C

Connector Output

Power/Data

Onboard Recording

Yes

Storage Capacity

32GB

Power Source

USB-C External, IBP - 2 Li-ion Battery Pack

Run Time

3+

External Power Source

USB-C

Startup Time

<10 Seconds, Instant from Standby

Warranty

5 Years

Country of Manufacture

China

Environmental Specifications

Operating Temperature Range

-4°F~122°F

Physical

Length

6.30

Width

3.54

Height

1.97

Weight

14.11 Oz.

Housing Material

Aluminum

Sensor Specifications

Device Technology

Thermal Imaging

Sensor Type

InfiRay MICRO II

Sensor Resolution

640×512

Sensor Pixel Size

12μm

Sensor Frame Rate

50hz

Thermal Sensitivity

<25mk

Non-Uniformity Correction (NUC)

Manual, Automatic, Semi-Automatic

Spectral Response

8-12 Microns
