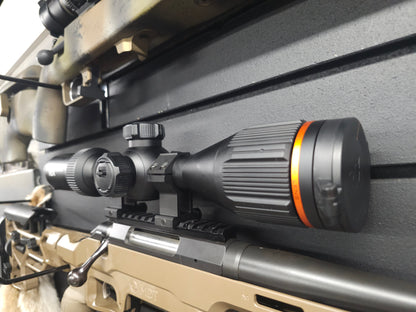

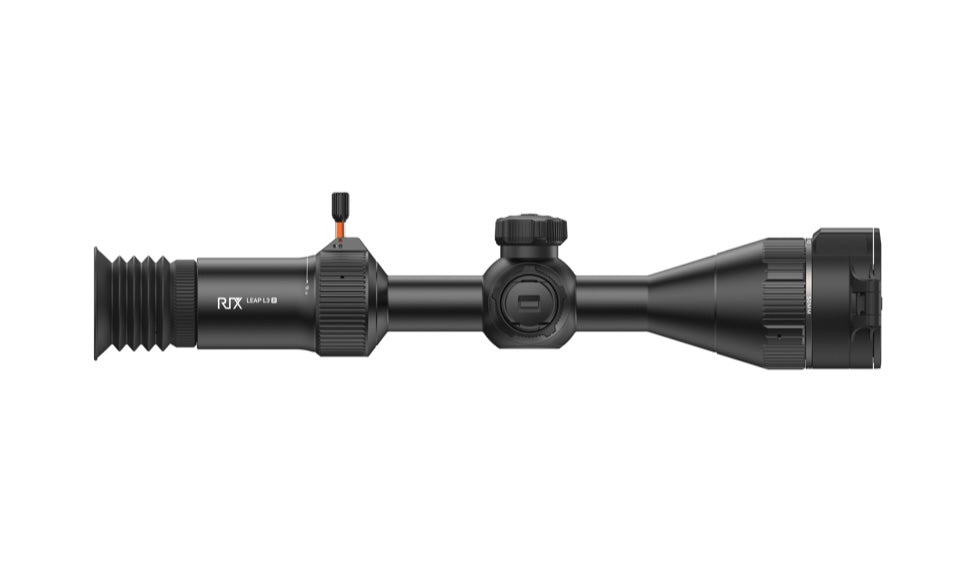

Demo RIX leap L6

Jay's Demo unit is available.

Sensor Resolution: 640×360

Objective Lens: 50mm

Optical Zoom: 2.8 to 8.4

Display Resolution: 1920×1080

Operating Time: 7h

The LEAP 6 (L6) is the world’s first continuous optical zoom 640 thermal scope, specially designed for outdoor hunting during the day and night. Equipped with a high-sensitivity infrared detector and advanced thermal imaging technology, it ensures clear visibility in challenging conditions such as rain, snow, fog, or darkness.

It features a 30mm standard tube diameter for easy mounting and offers a range of functionalities, including photography, video recording, automatic shooting capture, optical and electronic zoom, Picture-in-Picture (PIP), and a variety of reticle options.

Enjoy extended usage with the replaceable 18650 battery. A single battery provides over 9 hours of continuous operation, and with just three batteries, you can experience a full day of uninterrupted usage.

Simplify and streamline your operation with three knobs and two buttons, providing a user-friendly experience where zeroing adjustments no longer require changing directions.

SPEC SHEET

Sensor Specifications

Type

VOx Uncooled

Resolution, pixels

640×360

Pixel Pitch, µm

12

NETD, mK

<25

Frame Rate, Hz

50

Optical Specifications

Objective Lens，mm

50

Optical Zoom, x

2.8 to 8.4

Field of View, degrees / yd @ 100 yd

8.8°/15.4yd

Digital Zoom, x

1 to 4

Eye Relief, mm

50

Diopter Adjustment, D

-5 to +5

Detection Range, m/yd

2600/2844

Display Specifications

Type

OLED

Resolution, pixels

1920×1080

Wi-Fi

Wireless Protocol

Wi-Fi

Frequency, GHz

2.4GHz

Video Recorder

Video / Photo Resolution, pixels

960×720

Video / Photo Format

.mp4 / .jpg

Built-in Memory, GB

32

Physical Specifications

Degree of Protection, IP code

IP67

Operating Temperature Range, °F

-4 to +122

Weight, lb

2.6

Dimensions, inch

14.6×3.5×3

Connections and Compatibilities

Battery Type

18650

Capacity, mAh

3200

Operating Time on Battery Pack (at t=72°F), h

7

External Power Supply, V

5V (Type C USB)

Max Recoil Power on Rifled Weapon (Eo), g/Joules

1000g/6000Joules

Compatible Mounts

30mm rings
