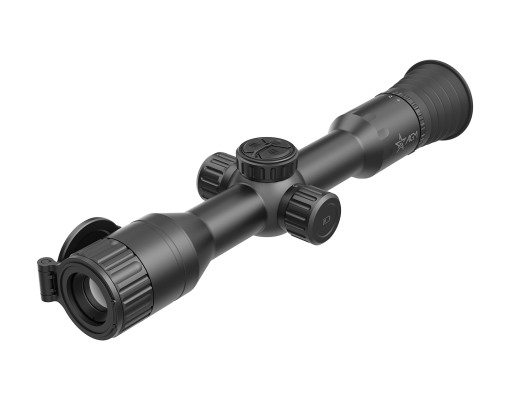

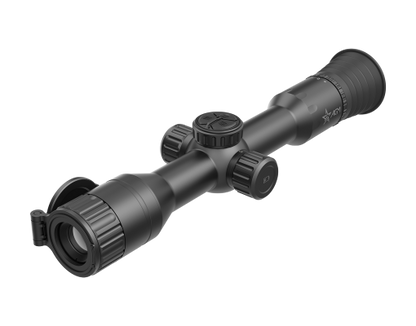

AGM Spectrum 4k Mini

The NEW Spectrum 4K-Mini digital day & night vision scope from AGM utilizes practically all features (except the laser rangefinder) that shooters have come to know and love in the Spectrum LRF 4K, but in smaller and lighter body. Spectrum 4K-Mini based on an advanced high-resolution 3840×2160 detector, which works in conjunction with a high quality 1920x1080 OLED display. This new display allows users the ability to switch from a semi-circular interface to a rectangular interface. Also added the ability to switch the image refresh rate to 100 Hz, that enhances image fluidity, particularly useful for fast-moving targets. The Spectrum 4K-Mini is one step in the continuous evolution of full color digital electro-optics. New and improved 4K digital sensors are now naturally more sensitive to infrared than older models once were, which means the unit should require much less external Infrared light while used in night mode. The Spectrum is literally built for prime, legal daytime hunting hours in the precious minutes just after sunrise and just prior to sunset. Powered by built-in rechargeable battery and one additional replaceable 18650 batteries. The 8hr battery life supplies users with more than enough time behind the eyepiece during hunting season. The internal storage capacity, which comes in at a robust 32GB, which will come in handy when recording in high resolution. If you’re looking for an exceptionally capable technological optic, the Spectrum 4K-Mini is the perfect addition to your arsenal.



3.5-20.5x incremental and step zoom capability

3840x2160 ultra-high-definition CMOS sensor

Supports Day/Night mode

Detection range up to 800m (daytime)

1920×1080 resolution OLED display

Various reticle types and colors

On-board video/audio recording and image capture

Shot-Activated Recording (SAR)

32GB EMMC built-in storage

Wi-Fi data transmission

AGM Connect App compatibility

Waterproof & Shockproof

Standby mode

Dual power system

Up to 7.8 hours continuous operation

External power supply capability

3-year warranty



 Specifications

Frame Rate

50 Hz (4K), 100 Hz (1080P)

Minimal Focusing Distance

2 m

Shot-Activated Recording

Yes

Max. Recoil

1000 g / 0.4 ms

Digital Zoom

Support continuous zoom with step 0.5x, 1x, 2x, 3x, 4x

External Power Supply

5 VDC/2 A, USB Type-C interface

Operating Temperature

-30°C to 55°C (-22°F to 131°F)

Field of View

Rectangular display : 10.7° × 6.1° / 18.7m×10.1m @100m; Circular display : 10° × 6.1° / 17.5m×10.1m @100m

Battery Type

Built-in rechargeable Li-Ion battery and one additional replaceable rechargeable 18650 battery (18650 battery included)

Battery Life (Operating)

Up to 7.8 hours continuous running (@ 25°C, WI-FI OFF)

Exit Pupil Diameter

6 mm

Reticle

10 reticles, 8 colors

Distance Measurement

Yes (Stadiametric)

Picture In Picture Mode (PIP)

Yes

Hotspot

Yes

Video Recording

Yes (1920x1080)

Audio Recording

Yes

Magnification

3.5× - 20.5×

Standby Mode

Yes

Resolution

3840 × 2160

Snapshot

Yes (1920x1080)

Lens system

40 mm, F/2.0

Mounting

Standard 30 mm

Eye relief

45 mm

Display

0.49" OLED display, 1920×1080

Storage

Built-in EMMC (32 GB)

Weight

0.45 kg / 1.0 lb (without mount and additional battery)

Protection Level

IP67

Dimensions

331 × 86 × 67 mm / 13 × 3.4 × 2.5 in (without mount and eye cup)

Diopter Adjustment

-5D to +5D
