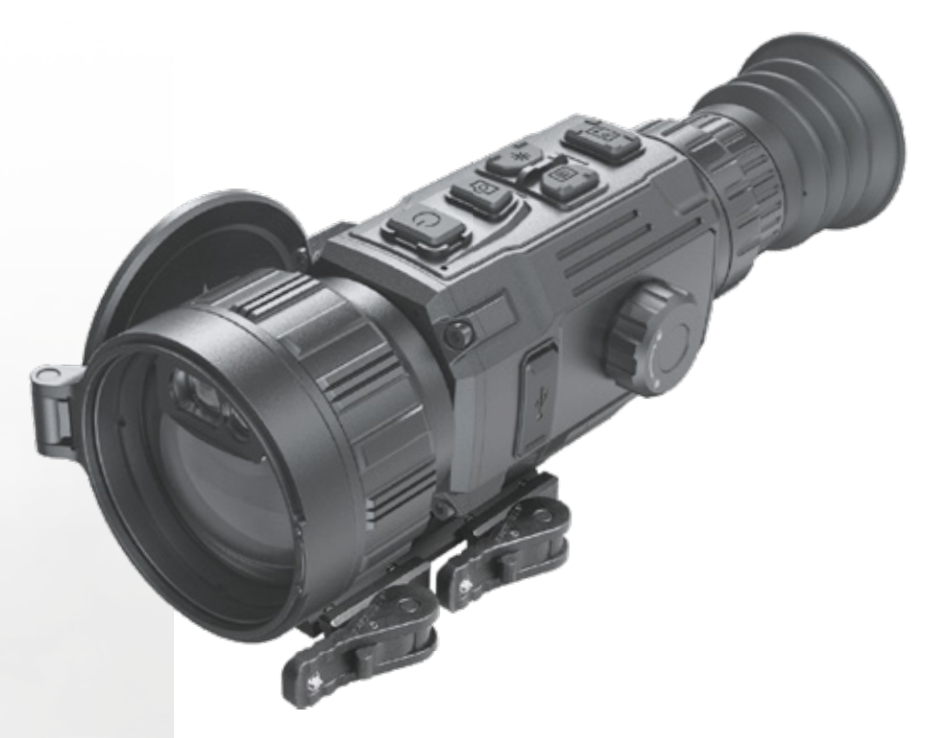

AGM RattlerV3 LRF 50-640

AGM RattlerV3 LRF 50-640

Regular Price $4,495.00
Regular Price $4,995.00 Sale Price $4,495.00
Sale Sold Out

NEW 2025

Although it seems like just yesterday the celebrated AGM Rattler thermal riflescope family got  upgraded with the introduction of the RattlerV2’s, the NEW RattlerV3 LRF testifies to the fact that  evolution never stops. The RattlerV3 LRF 50-640 brings the once inconceivable new in-lens LRF  technology to the compact Rattler series as well. Not only that, but the RattlerV3 LRF 50-640  also pairs a new 1920 high resolution display with an industry-leading sub-15mk thermal sensor,  which combines to produce the best 640 resolution thermal image that we have ever produced.  These technical parameters work together to produce a detection range of just under 3 MILES.  Its also the first Rattler ever to come with a shutterless NUC and an adjustable display which  users can change from rectangular to semi-circular. It also works to raise the base magnification  of the RattlerV2 50-640 from 2.5X to 3.5X, making it an optimal option for predator hunters in  wide-open terrain, which entices longer range engagements. Flip on the new image boost 2.0  within the menu and users will be happy to concede that the AGM brand, which started five  years ago as a new and exciting entry-level competitor, has quickly evolved into one of the most  advanced thermal image producers on the planet.

  • 12 micron detector with 640x512 resolution
  • Sub-15mK thermal sensitivity
  • Built-in 1,000m laser rangefinder in the lens
  • Ballistic calculator
  • Large OLED display with 1920x1080 resolution
  • Shutterless technology
  • Integrated ballistic calculator
  • On-board video/audio recording and image capture
  • Shot Activated Recording (SAR) function
  • Built-in EMMC storage (64 GB)
  • Wi-Fi data transmission
  • More than 5.5 hours battery life
  • Waterproof & shockproof
  • 5-year warranty
  • Superior sub-15 milikelvin thermal sensitivity
  • 640×512 resolution with 12-micron sensor
  • Built-in 1,000m laser rangefinder in the lens
  • Integrated ballistic calculator
  • Large OLED display with 1920x1080 resolution
  • Shutterless technology
  • Various reticle types and colors
  • 3.5x to 28x magnification
  • On-board video/audio recording and image capture
  • Built-in EMMC storage (64 GB)
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Standby mode
  • Over 5.5 hours battery life
  • External power supply compatibility
  • Waterproof & shockproof
  • 5-year warranty
Characteristics

Detector type: 12μm Uncooled

Refresh rate: 50 Hz

Resolution: 640×512

Base Magnification: 3.5× - 28×

FOV: 8.7° × 5.3°





Specifications


Ballistic calculator
Yes
Safety Class for Laser
Class1
Shot-Activated Recording
Yes
Max. Recoil
1000g/0.4ms
Dimensions
232 × 83 × 70 mm ( 9.1 × 3.3 × 2.8 in )
Wavelength
905 nm
Palettes
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil Diameter
6 mm
Reticle
10
Distance Measurement
Built-in Laser Rangefinder
Picture In Picture Mode (PIP)
Yes
Defective Pixels Correction (DPC)
Yes
Audio Recording
Yes
Magnification
3.5× - 28×
Detector type
12μm Uncooled Focal Plane Arrays
FFC (Flat Field Correction)
Semi-Auto, Manual
Standby Mode
Yes
Refresh rate
50 fps
Aperture
F 1.0
Resolution
640×512
Measuring Distance of Laser Rangefinder
10 m to 1000 m
Detection Range (6' object)
2,600 m
NETD
≤15 mK
Field of view (H × X)
8.7° × 5.3° (15.2 m × 9.19 m@100 m)
Digital zoom
1×, 2×, 4×, 8×
Diopter adjustment range
-4 D to 3 D
Focusing range
15 m minimum
Hot Track
Yes
Eye relief
45 mm
Display
1920x1080, 0.49 inch, OLED
Storage
Built-in EMMC (64 GB)
Record Video
Yes
Capture Snapshot
Yes
Battery Type
Replacable and Rechargeable Li-ion Battery
Wi-Fi
Yes
Battery Operating Time
≥5.5 h (25°C, with hotspot off)
Power supply
5V DC/2A Supports external power supply
Operating Temperature Range
-30°C to 55°C (-22°F to 131°F)
Weight
585 g (1.3 lb)
Protection Level
IP67
