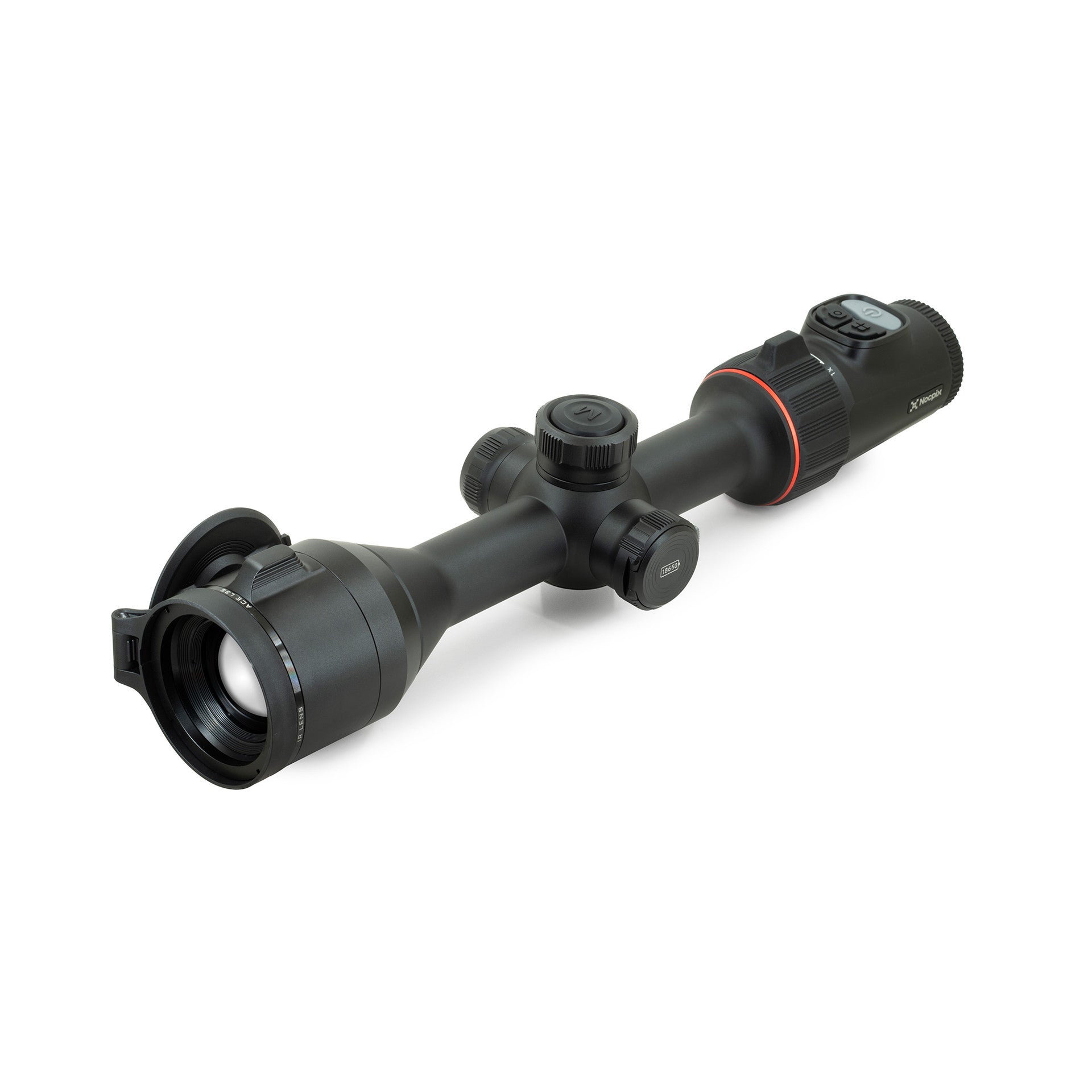

ACE L35 384x288 35mm

ACE L35 384x288 35mm

Regular Price $2,799.00
Regular Price Sale Price $2,799.00
Sale Sold Out

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 18 mK NETD sensor for an incredibly detailed and precise image.

New for 2025, the ACE L35 offers a more affordable option in the ACE line for predator and hog hunters who don't require a laser rangefinder or higher resolution sensor. Packing tremendous value, the ACE L35 retains all other features of ACE line of thermal rifle scopes.



  • Lens-integrated laser rangefinder adds rangefinding capability to the optic and better laser alignment without adding bulk.
  • A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
  • High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
  • Simplified controls offer improved ergonomics and a better user experience in the field.
  • Uses common 18650 style rechargeable batteries.
  • A ballistic calculator function displays bullet drop values based on the laser rangefinder input data and a user-customized cartridge profile.
  • Charge through the unit with a unique lock-out USB-C port design.



Sensor Type

Nocpix 384

Sensor Pixel Size

12μm

Thermal Sensitivity

<18mk

Non-Uniformity Correction (NUC)

Manual, Automatic, Semi-Automatic

Sensor Frame Rate

60hz

Device Technology

Thermal Imaging

Sensor Resolution

384×288

Display Type

AMOLED

Eye Relief

50mm

Objective Focal Length

35mm

Digital Magnification

4X

Diopter Range

-5 to +5

Vertical Angular Field of View

5.7°

Horizontal Angular Field of View

7.5°

Focusing Mechanism

Manual Focus

Objective F#

0.9

Objective Diameter

35mm

Objective Lens Material

Germanium

Display Resolution

2560×2560

Detection Range

1970 Yards

Optical Magnification

3X

Warranty

5 Years

Startup Time

<10 Seconds, Instant from Standby

Color Palettes

White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

Picture-in-Picture

Yes

Storage Capacity

64GB

Connector Output

Power/Data

User-Updatable Firmware

Yes

Mobile App

Yes

Run Time

7+

Power Source

USB-C External, 18650 Battery, Built-In Battery Pack

One-Shot Zero

Yes

Stand-by Mode

Yes

Connector Type

USB-C

External Power Source

USB-C

Country of Manufacture

China

Wifi

Yes

Onboard Recording

Yes

Image Capture

Yes

Video Output

Yes
